Radiant Heating System 3

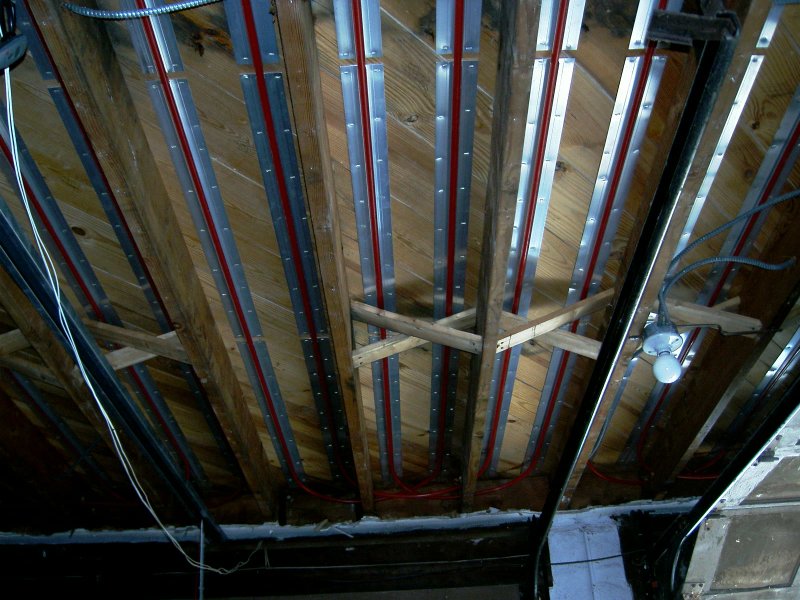

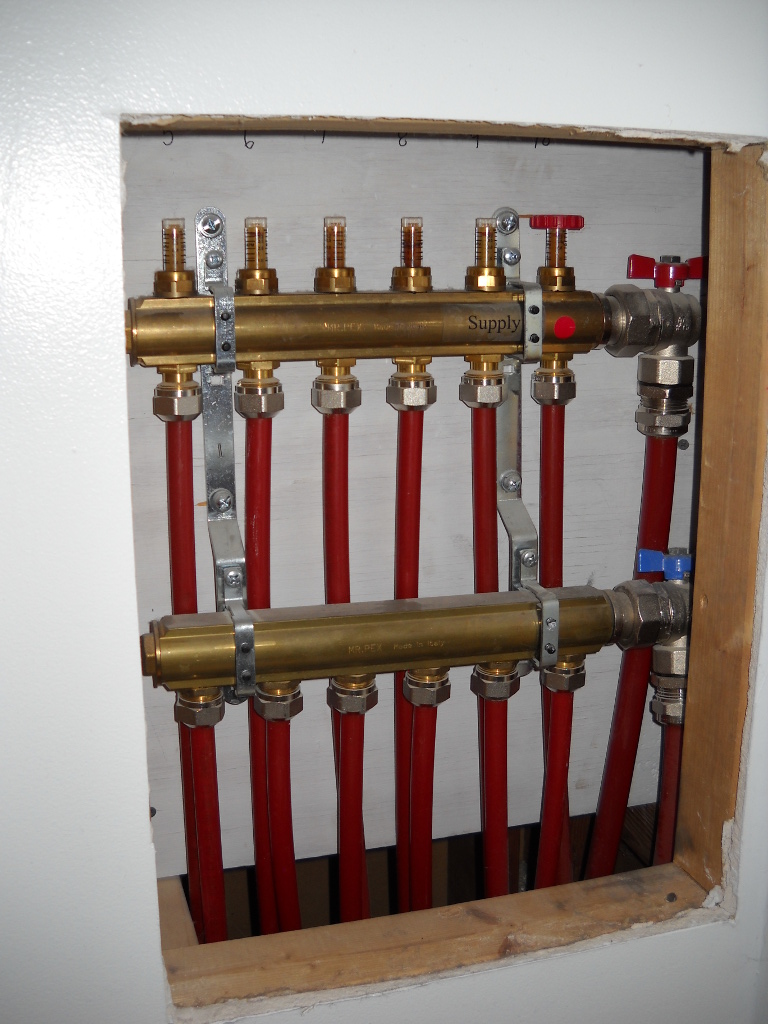

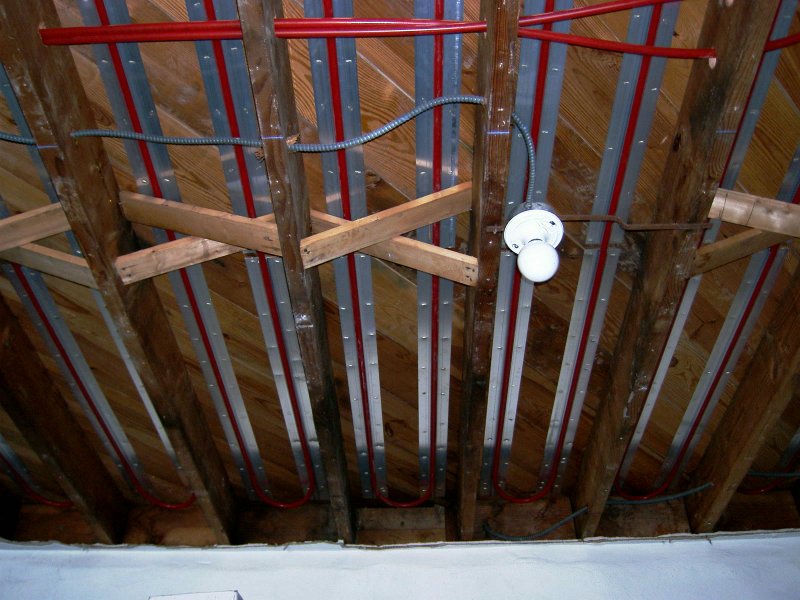

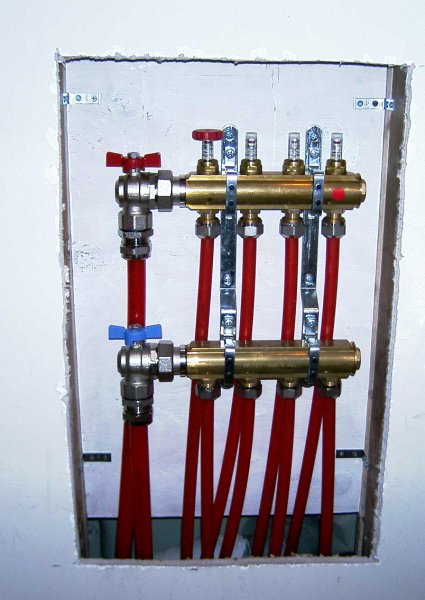

NRT Radiant provided detailed instructions with tubing layouts for each tubing loop. There were four loops in the first area that tied into one manifold and six loops that tied into the second manifold. (see the last two pictures below).

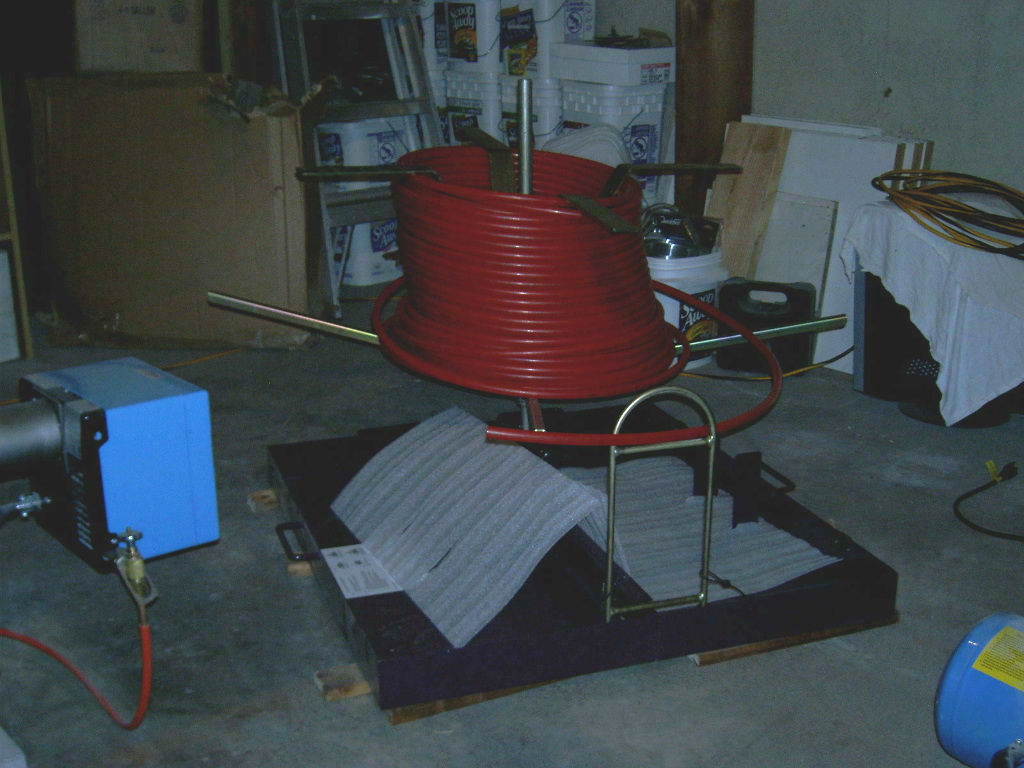

To make installing the tubing easier, a tubing uncoiler is recommended. This one is made by Tools That Rock.

To drill the holes in the joists for the tuning to run through, I used an angle drill.
